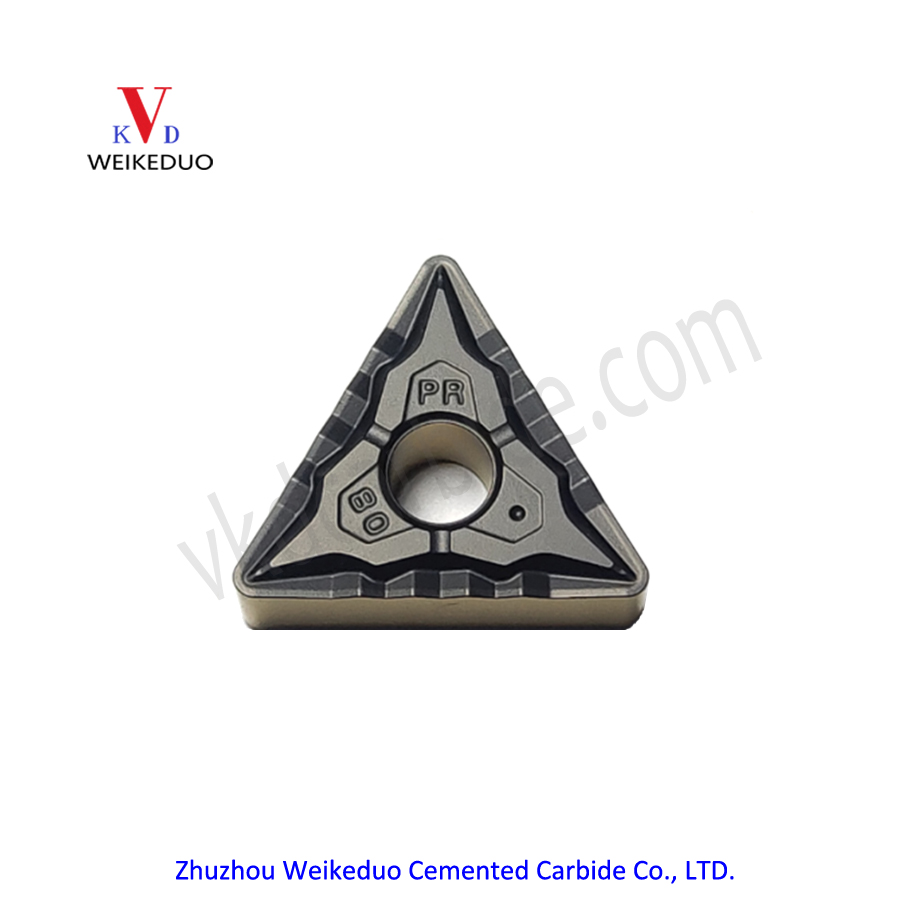

TNMG-PR Turning Inserts

ISO CNC Inserts. Suitable for semi-finishing ISO P material. Special chipbreaker design to keep excellent chip breaking and control the chip breaking direction efficiently.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

TNMG-PR

TNMT - PR

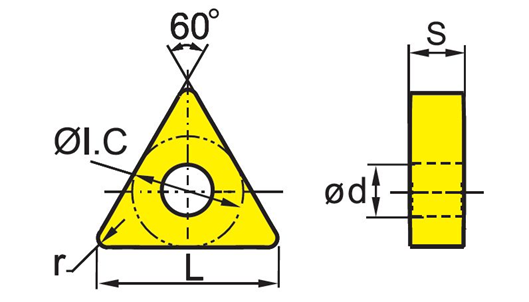

SIZE	S	Φd	r
TNMG160408-PR	4.76	3.81	0.8
TNMG160412-PR	4.76	3.81	1.2
TNMG220408-PR	4.76	5.16	0.8

TNMG-PR

Grade: VKD1153 VKD1253

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel			●
	Stainless steel
	Cast lron			○
	Nonferrous Material			○
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable

Suitable for medium processing of steel, special chipbreaker design to keep excellent chip breaking and control the chip breaking direction efficiently
