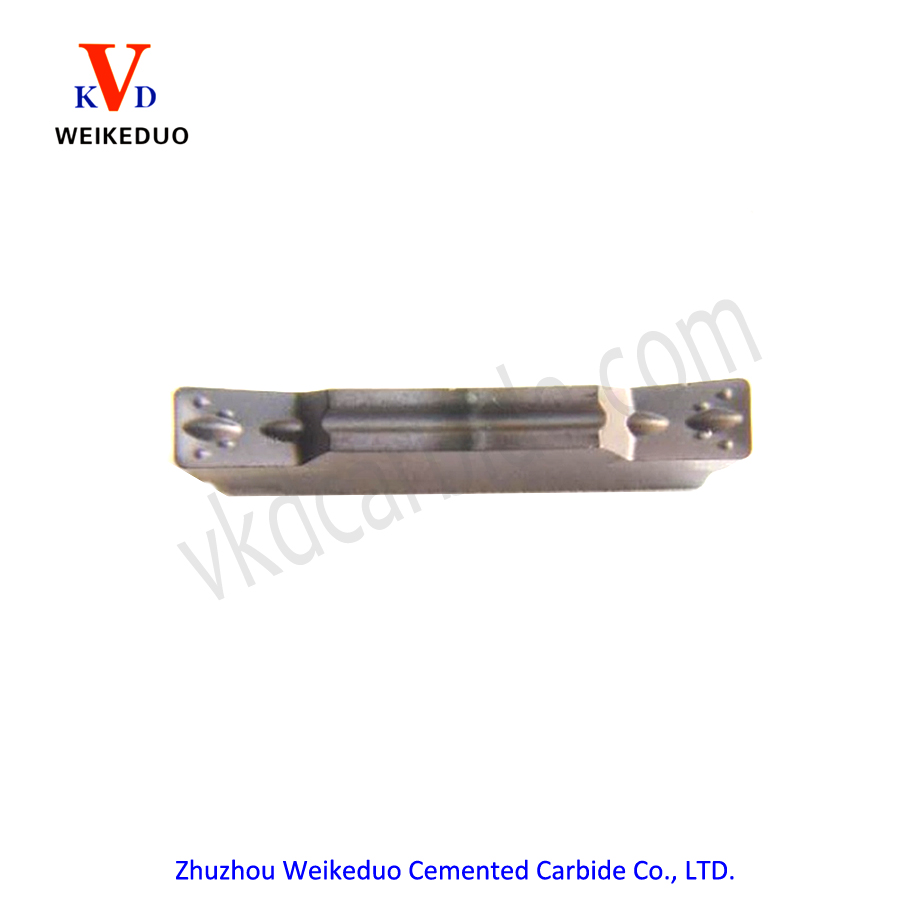

MGMN-M Cutting Inserts

Grooving & Parting Inserts. Suitable for ISO K/P/M material.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

MGMN-M

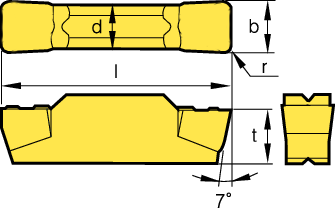

Size	b(mm)	r(mm)	l(mm)	t(mm)	K(mm)
MGMN200-M	2	0.2	16	1.6	3.5
MGMN250-M	2.5	0.2	18.5	2	3.85
MGMN300-M	3	0.4	21	2.35	4.8
MGMN400-M	4	0.4	21	3.3	4.8
MGMN500-M	5	0.8	26	4.1	5.8
MGMN600-M	6	0.8	26	4.2	5.8

Note: The dimensions and shape can be customized according to the customer's requirements.

MGMN-M Cutting Inserts

Grade: VKD721/VKD137/VKD118

ISO							Other
SUITABLE	●	●	●	○			○

● -Priority ○ -Suitable
