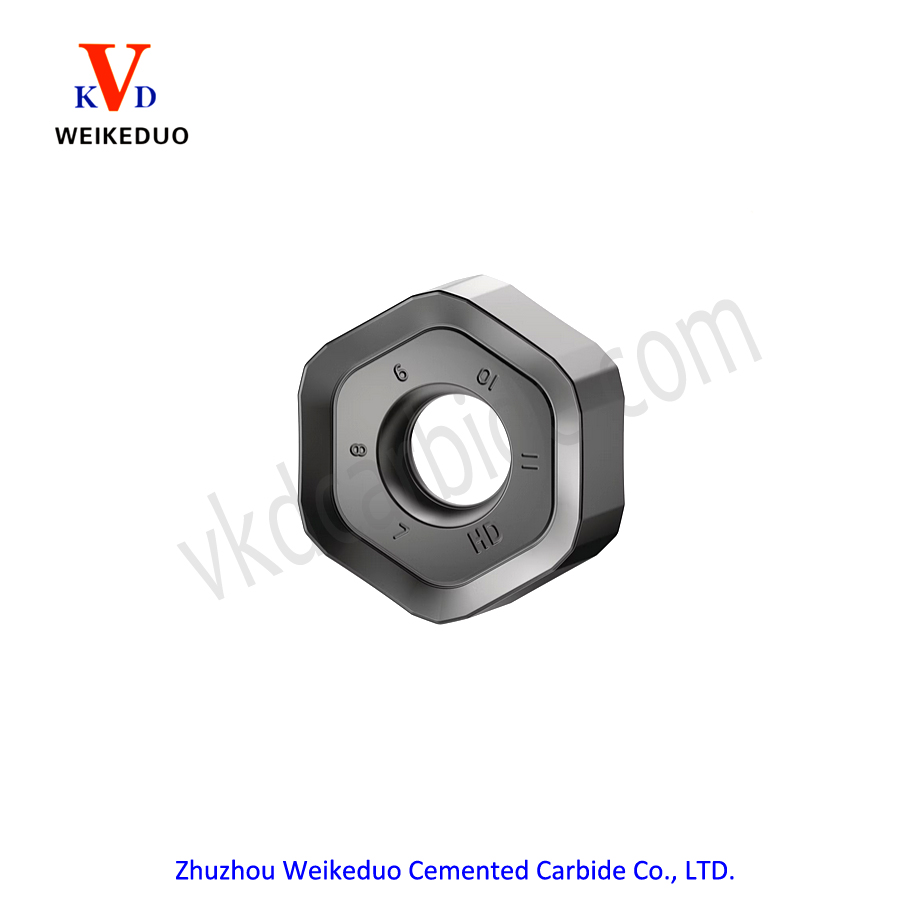

HNPJ130720ANSN-HD Milling Inserts

HN** 45 Degree Face Milling Insert.

milling inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

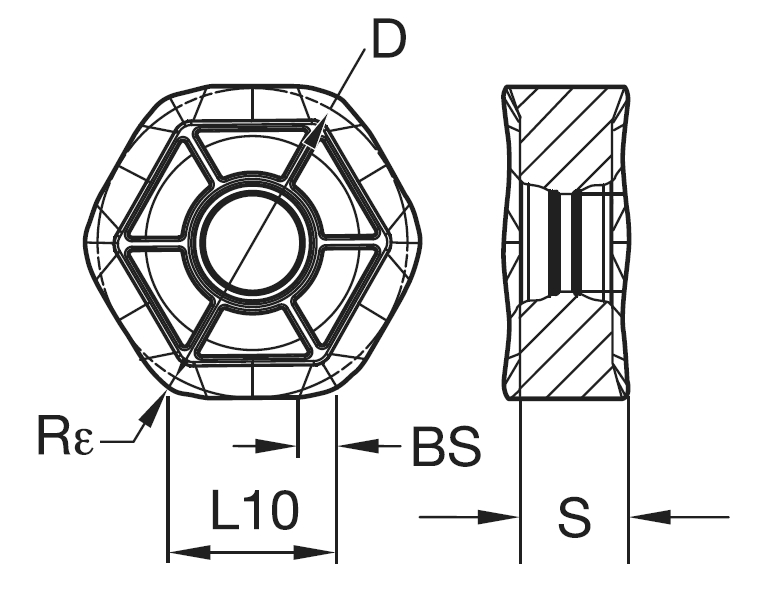

Description	Value
Insert included angle	120 Degree
Cutting edge length	9.16 mm
Inscribed circle diameter	15.88 mm
Insert thickness	5.56 mm
Corner radius	2.0 mm
Tolerance class insert	G
Insert mounting style code	3 - Counter bore for screws with taper angle from 40° to 60°
Standard designation	HNGF090520
Standard designation ANSI

HNPJ130720ANSN-HD Milling Inserts

Grade: VKD155

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel				●
	Stainless steel				●
	Cast lron				●
	Nonferrous Material
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
