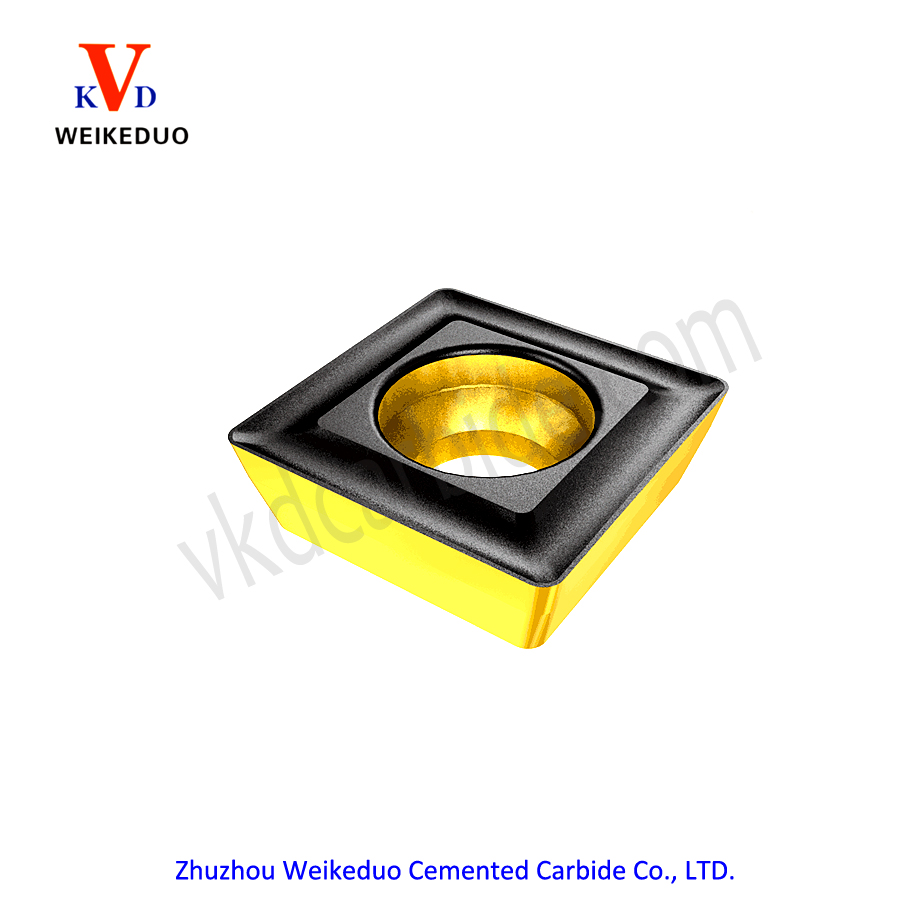

SOGX-W Milling Inserts

SOGX060304-W SOGX070305-W SOGX09T306-W

milling inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

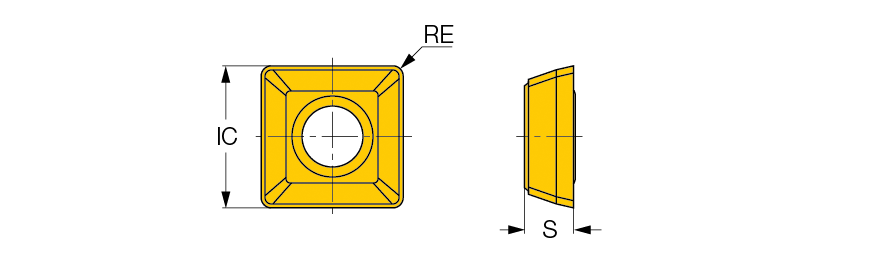

Description	Value
Insert included angle	90 Degree
Cutting edge length	6.2/7.7/9.2 mm
Inscribed circle diameter	6.2/7.7 /9.2 mm
Insert thickness	3.2/3.6/3.97 mm
Corner radius/Wiper edge length	0.4/0.5/0.6 mm
Tolerance class insert	G
Insert mounting style code	3 - Counter bore for screws with taper angle from 40° to 60°
Standard designation	SOGXXXXXXX
Standard designation ANSI

SOGX-W Milling Inserts

Grade: VKD137

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel			●	●
	Stainless steel			●	●
	Cast lron			●	●
	Nonferrous Material
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
