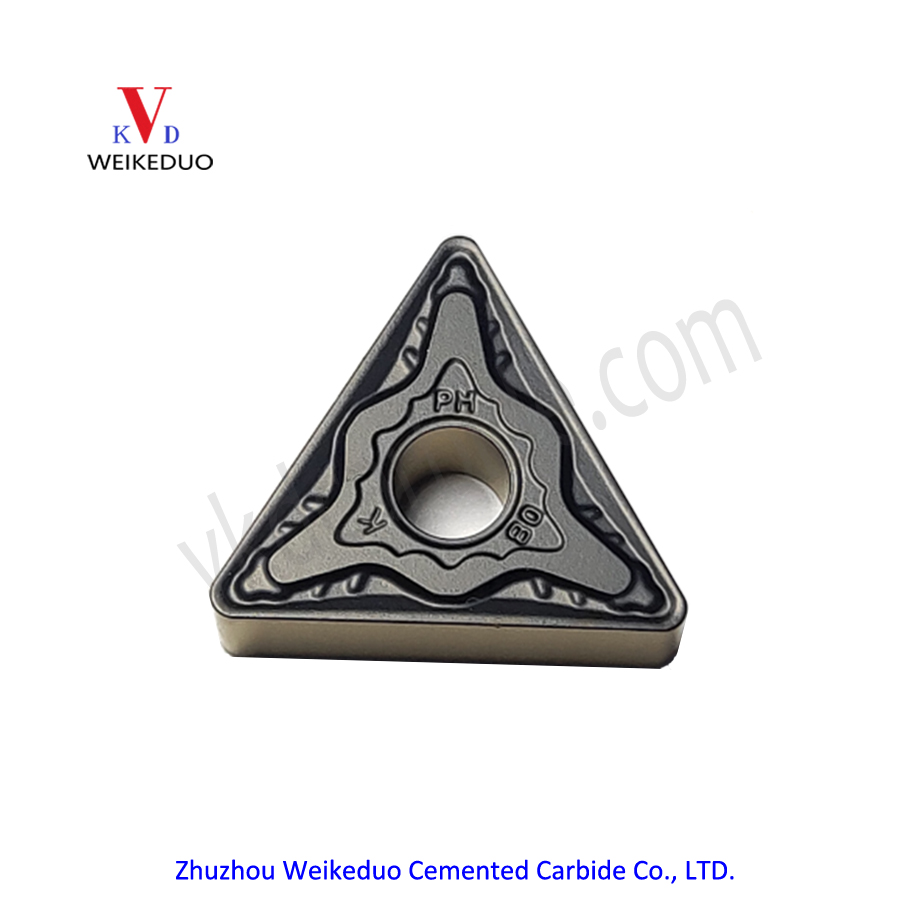

TNMG-PMK Turning Inserts

ISO CNC Inserts. Suitable for semi-finishing and Roughing ISO P/K material.

turning inserts
ISO9001:2008; GB/T19001-2008
zhuzhou
weikeduo

Get Price

PROJECT DETAIL

TNMG turning inserts

TNMT - PMK

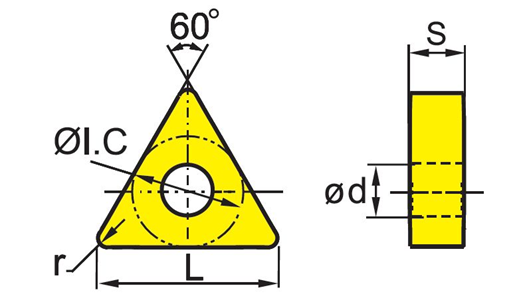

SIZE	S	Φd	r
TNMG160404-PMK	4.76	3.81	0.4
TNMG160408-PMK	4.76	3.81	0.8
TNMG160412-PMK	4.76	3.81	1.2
TNMG160416-PMK	4.76	3.81	1.6
TNMG220404-PMK	4.76	5.16	0.4
TNMG220408-PMK	4.76	5.16	0.8
TNMG220412-PMK	4.76	5.16	1.2

TNMG turning inserts

Grade: VKD1252(Black) VKD1253(Double Color)

Workpiece		Wiper	Finishing	Semi-finishing	Roughing	Other
	Steel			●	●
	Stainless steel
	Cast lron			●	●
	Nonferrous Material			○	○
	Heat Resistance Material
	Hardened Material

● -Priority ○ -Suitable
