GESAC Standard | Unground ØD (mm)
| Ground ØD (mm) |
Range
| Tol.
| Range | Tol. |
| ØD=6 | +0.60, +1.00
| 6≤ØD≤20 | h5/h6
|
| 6≤ØD≤20 | +0.70, +1.10
|

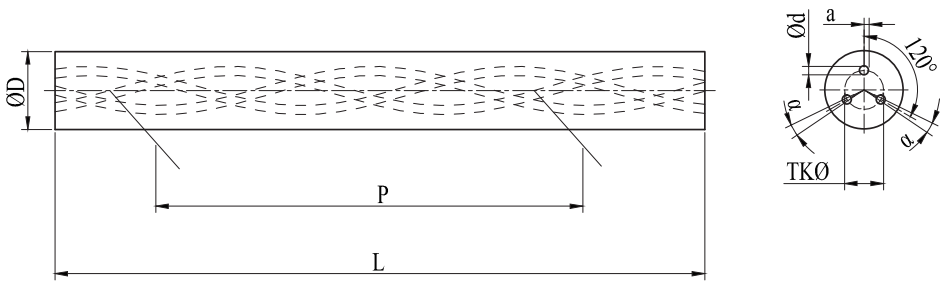

| Ød (mm) | TKØ (mm)
|
| Range | Tol. | Range | Tol. |
| 0.40≤Ød≤0.90 | ±0.10 | TKØ≤4.00 | +0, -0.40
|
| 0.90≤Ød≤1.70 | ±0.15 | 4.00<TKØ≤6.00 | +0, -0.60 |
| Ød=1.75 | ±0.20 | 6.00<TKØ≤9.55 | +0, -0.80 |
| Ød=2.00 | ±0.25 | TKØ=10.00 | +0, -1.00 |
Classifcation of Grain Size of Cemented Carbide (lS04499-2-2008)
Category
| Grain size of WC (μm) |
Nano
| <0.2
|
Ultrafine
| 0.2∽0.5 |
Submicron
| 0.5∽0.8 |
Fine
| 0.8∽1.3 |
Medium
| 1.3∽2.5 |
Coarse
| 2.6∽6.0 |
Extra coarse
| >6.0
|
Grade Selection Guide
Workpiece
| Type of Cutting Tools
| First Chioce
| Second Chioce | Diamond coating |
| Steel
| Endmill
| Roughing
| □ | □ | □ |
Finishing
| □ | □ | □ |
Drill
| □ | □ | □ |
 | Stainless
steel | Endmill
| Roughing
| □ | □ | □ |
| Finishing | □ | □ | □ |
| Drill | □ | □ | □ |
 | Cast lron
| Endmill | Roughing
| □ | □ | □ |
| Finishing | □ | □ | □ |
| Drill | □ | □ | □ |
 | Nonferrous
Material | Endmill | Roughing
| □ | □ | □ |
| Finishing | □ | □ | □ |
| Drill | □ | □ | □ |
 | Heat
Resistance Material | Endmill | Roughing
| □ | □ | □ |
| Finishing | □ | □ | □ |
| Drill | □ | □ | □ |
| Hardened
Material | Endmill | Roughing
| □ | □ | □ |
| Finishing | □ | □ | □ |
| Drill | □ | □ | □ |
Others
| Graphite | □ | □ | □ |
CFRP
| □ | □ | □ |
PCB
| □ | □ | □ |
Note: Shape can be customized according to the customer's requirements.
